Engineered for aerospace, automotive, metal fabrication, and MRO applications. Designed to deliver consistent micro-finishing, rapid deburring, and uniform blending without altering workpiece geometry.
Quantifiable benchmarks established across aerospace MRO depots, automotive assembly plants, and automated robotic finishing cells.

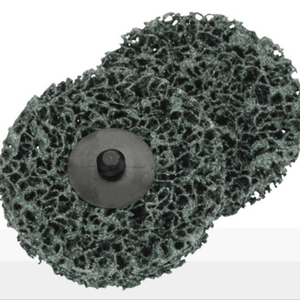

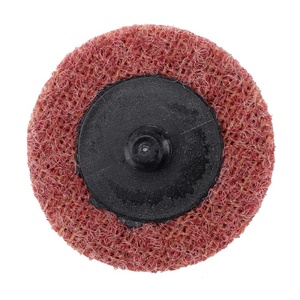

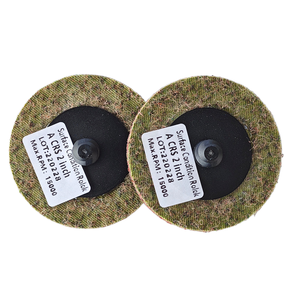

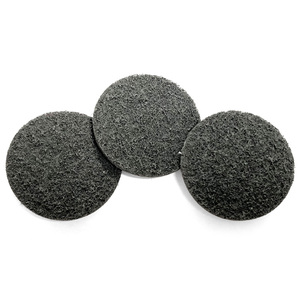

Surface conditioning discs (commonly abbreviated as SC Discs) represent a vital evolution in industrial abrasive metallurgy and material finishing technology. Unlike traditional bonded grinding wheels or coated abrasive paper—which aggressively remove base material and risk altering precision component geometry—non-woven surface conditioning discs utilize a three-dimensional web matrix of nylon fibers impregnated throughout with micro-grain abrasive minerals bonded by synthetic thermosetting resins.
This open-web structure compresses under pressure, conforming smoothly to complex contours, weld seams, micro-edges, and structural radiuses. As the disc rotates, the synthetic fibers gradually break down to continually reveal fresh, sharp abrasive grain. This self-sharpening mechanism eliminates thermal loading (clogging), mitigates heat generation on heat-sensitive alloys like Titanium and Inconel®, and maintains a uniform rate of cut from first contact to disc exhaustion.
Constructed with high-tenacity Nylon 6,6 filaments designed to withstand high RPM sheer stress. The open-mesh geometry allows airflow during operation, dissipating frictional heat and preventing resin smearing on stainless steel and aluminum structural panels.
Available in Premium Ceramic Aluminum Oxide (for extreme toughness and heat resistance), Silicon Carbide (for razor-sharp cut on non-ferrous titanium and glass), and Standard Aluminum Oxide (for cost-effective deburring on general carbon steels).

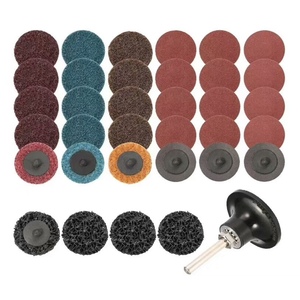

Engineered for standard Type R (Roll-On / Roloc compatible) and Type S (Square-drive) turn-on hubs. Ensures vibration-free concentricity up to 25,000 RPM, accelerating tool changeovers on fast-paced maintenance lines.
Selecting the optimal surface conditioning disc grade requires balancing mineral hardness, matrix density, and operational speed against the metallurgy of the workpiece:
| Workpiece Substrate | Recommended Disc Grade | Mineral Grain Type | Target RPM Range (2" Disc) | Primary Industrial Purpose |
|---|---|---|---|---|
| Aerospace Al 2024 / 7075 | Medium (Maroon) / Fine (Blue) | Premium Aluminum Oxide | 12,000 – 18,000 RPM | Clad layer cleaning, rivet hole deburring, paint prep without gouging. |
| Titanium Ti-6Al-4V Alloy | Coarse (Brown) / Extra Cut | Silicon Carbide / Ceramic | 8,000 – 12,000 RPM | Thermal oxide scale removal, structural weld seam blending, stress relief. |
| Stainless Steel 304 / 316 | Coarse (Brown) / Medium | Ceramic Aluminum Oxide | 15,000 – 20,000 RPM | TIG weld discoloration cleanup, decorative satin finishing, burr removal. |
| Carbon Fiber (CFRP) Stacks | Super Fine (Grey) / Fine | Silicon Carbide | 10,000 – 14,000 RPM | Fray trimming, composite edge smoothing without delamination or fiber pullout. |

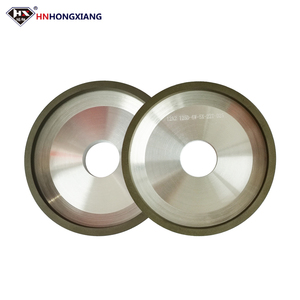

| Tool Steel & Hardened Dies | Diamond Cup Wheel (12A2) | Synthetic Diamond Superabrasive | 3,000 – 6,000 RPM | Precision carbide grinding, mold sharpening, ultra-hard edge finishing. |
Building upon a rich foundation of precision manufacturing and global aerospace tool distribution since 1986, our company stands as a cornerstone supplier for high-reliability finishing consumables. Holding recognized defense credentials including CAGE Code 0PFP1, we adhere strictly to international quality frameworks and aerospace tooling specifications.
Our surface prep abrasives and pneumatic accessories are deployed globally across commercial airlines, defense maintenance depots, tier-1 aerostructure plants, and automotive OEMs.
Every batch undergoes rigorous tensile strength testing, RPM burst resistance testing, and dynamic balance certification before leaving our warehouse.
As smart manufacturing, industrial automation, and environmental regulations reshape global shop floors, procurement directors must evaluate key technological shifts in surface conditioning technology.
Automated robotic arm deburring requires non-woven discs with ultra-consistent dynamic wear rates. Modern high-density discs feature engineered tear resistance that allows force-torque sensors to maintain predictable contact pressure without fast wearout.
Next-generation conditioning discs incorporate structured ceramic grain shapes aligned geometrically within the nylon matrix. This yields faster cut rates at lower applied pressures, drastically reducing operator fatigue and hand-arm vibration syndrome (HAVS).
Global ESG mandates are accelerating the adoption of solvent-free polyurethane binders and post-consumer recycled polyamide fibers. These eco-friendly non-woven backing matrices maintain full chemical resistance while reducing industrial volatile organic compound (VOC) emissions.
Contact our application engineering team today for technical advice, custom grit configurations, and wholesale export pricing tailored to your production schedules.
Direct technical answers from our surface finishing specialists to simplify your purchasing decision.
Streamline your surface finishing operations with industrial-grade conditioning discs engineered for maximum longevity and defect-free finishes.
