As aerostructure engineering, electronic miniaturization, and advanced defense manufacturing push the boundaries of material tolerances, high-performance countersinking demands flawless precision. CE-certified micro countersinks represent the gold standard in chatter-free surface chamfering, exact flush fastener seated depths, and high-velocity hole deburring across exotic metals and carbon composites.
Engineered for aviation MRO, defense, automotive, and micro-machining production lines.
In structural aerospace skin fastening and high-density electronics manufacturing, a discrepancy of mere microns in countersink depth can cause turbulent aerodynamic drag or catastrophic structural rivet head shear. CE-certified micro countersinks are engineered under stringent mechanical directives (including EU Machinery Directive 2006/42/EC and EN ISO 12100 safety frameworks) to guarantee absolute repeatability.
Equipped with NAS 965 Type D 1/4"-28 threaded shanks, twin precision thrust ball bearings, and zero-mar nylon non-rotating feet, these tools allow machinists to lock depth adjustment increments down to 0.0005 inches (0.0127 mm). This eliminates cutter chatter, heat build-up, and substrate scoring during high-speed riveting preparation.
Manufactured to conform with NAS 965, NAS 907, and ISO 9001 quality controls. Standard included angles of 82°, 100°, 120°, and 130° serve worldwide aviation networks and defense maintenance depots (CAGE Code 0PFP1 verified).
Selecting the optimal micro countersink cutter material and pilot configuration based on workpiece substrate parameters.
| Substrate Material | Recommended Cutter Metallurgy | Flute Geometry & Angles | Cutting Speed (SFM) | Feed & Depth Control Strategy |
|---|---|---|---|---|
| 2024-T3 / 7075-T6 Aluminium | M42 8% Cobalt HSS / TiAlN Coated | 3-Flute Chatterless or Cross-Hole (90°/100°) | 250 - 450 SFM | Micro-stop cage with nylon foot; high RPM to avoid built-up edge. |
| Ti-6Al-4V Titanium Alloy | Solid Micrograin Tungsten Carbide | 6-Flute Positive Rake (100° / 130°) | 60 - 110 SFM | Twin-bearing micro-stop cage; positive constant thrust pressure with mist lubrication. |
| Inconel 718 / 316L Stainless | Solid Carbide / AlTiN Coated Carbide | Heavy-Duty Web 3-Flute (82° / 100°) | 40 - 80 SFM | Low RPM, heavy feed pressure; mandatory zero-dwell to eliminate work-hardening. |

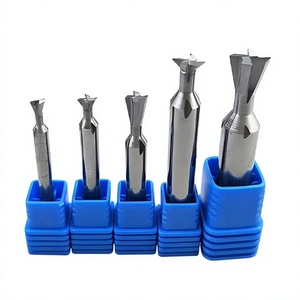

| CFRP / Carbon Composite Stacks | Diamond Coated (PCD) / Micrograin Carbide | Dovetail / Brad Point Pilotless Geometry | 300 - 600 SFM | High-speed vacuum dust extraction micro-cage to prevent matrix delamination. |
Why leading tier-1 aerostructure manufacturers and international distributors partner with our CE-certified production facility.
Every micro-stop cage and micro countersink bit undergoes 100% optical profile inspection and dynamic concentricity balancing. Certified under EU CE Machinery standards for integrated industrial safety and reliability.
Featuring dual precision radial and thrust needle roller bearings inside the cage body. Prevents side-load shaft wobble, eliminates thermal expansion, and extends cutter life up to 300% over single-bushing alternatives.
We maintain expansive global inventory encompassing micro-stop countersink cages, threaded shank drills, piloted chucking reamers, chatterless countersinks, and solid carbide burrs, minimizing lead times for critical MRO grounded aircraft (AOG).
Modern airframe designs (e.g., Boeing 787, Airbus A350, and next-gen eVTOL aircraft) rely heavily on carbon-fiber composite skins bonded to titanium or aluminium substructures. Micro countersinks now utilize multi-angle double-margin steps and specialized Diamond-Like Carbon (DLC) coatings to clean composite fibers without causing top-layer delamination or burr formation on exit.
High-volume automated assembly cells require micro-stop cages integrated with electronic depth feedback sensors and micro-torque limiters. Modern CE-compliant micro countersink holders feature quick-change hex drives and spindle-locking sleeves compatible with cobots and 6-axis CNC machining centers.
Miniaturization in electronics housings and aerodynamic drag reduction in modern military UAVs have popularized thin-head M3 to M6 machine screws (120-degree profiles). Tools are migrating from traditional 100° angles to precision ground 120° micro cutters engineered specifically for thin sheet metal skins without compromising tensile strength.
How procurement teams are optimizing their tooling supply chains to enhance efficiency and ensure compliance.
Global aerospace maintenance stations are moving away from piecemeal sourcing toward full-system procurement—combining NAS 965 threaded shank drills, twin-bearing micro-stop cages, and matching piloted cutters under single vendor contracts with guaranteed CAGE code traceability.
Sustainability mandates require solid tungsten carbide countersinks to feature high re-grind potential. Manufacturers supplying tooling with consistent micro-grain substrates allow 3 to 5 precision re-sharpening cycles, reducing total cost of ownership (TCO) by up to 45%.
Direct technical responses from our chief tooling engineers regarding micro countersinks and micro-stop cage setups.

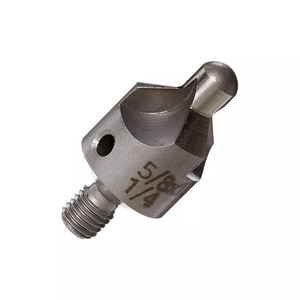

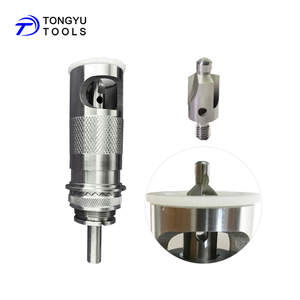

A micro-stop countersink cage is an adjustable depth-limiting housing that threadedly attaches to portable drill motors or stationary spindles. By adjusting the micrometric locking collar, the cutting depth of the inner micro countersink bit can be limited to an exact depth (accurate within ±0.0005"), preventing oversizing of flush rivet heads or workpiece marring.
CE certification guarantees compliance with European health, safety, and environmental protection standards—specifically EU Machinery Directive 2006/42/EC. For automated machining cells and aerospace maintenance, CE certification ensures structural tool integrity under dynamic high-speed rotation, preventing shaft fracture and operator hazard.
Chatter is typically eliminated by using odd-flute micro countersinks (e.g., 3-flute or 5-flute chatterless designs) or zero-flute cross-hole chamfer bits. Ensure the spindle feed rate is positive and constant, run at reduced surface feet per minute (SFM), and use a twin-bearing micro-stop cage to dampen axial vibration.
The global aerospace standard shank thread is 1/4"-28 UNF (conforming to NAS 965 Type D specifications). This allows seamless interchangeability across pneumatic angle drills, micro-stop cages, rivet shavers, and right-angle attachment heads.
M42 Cobalt (8% cobalt content HSS) provides superior toughness and flexural strength, making it ideal for hand-held pneumatic drilling where slight tool misalignment may occur. Solid Micrograin Carbide offers extreme red-hardness and wear resistance, making it suitable for high-speed CNC automated setups, abrasive carbon composites, and hard titanium milling.
Connect directly with our engineering sales team for technical dimensional drawings, custom pilot geometry grinding, and volume wholesale pricing.
